be quiet! Pure Power 13 M 650W power supply review: Balanced performance and reliability

Be quiet! maintains its reputation for engineering products that prioritize acoustic performance without compromising functionality. The German manufacturer's portfolio spans power supplies, cases, and thermal solutions, all designed with noise reduction as a fundamental principle. This focus has cultivated a loyal following among enthusiasts who refuse to accept unnecessary system noise as inevitable.

The Pure Power 13 M 650W represents Be quiet!'s latest effort to balance performance, efficiency, and value in the mid-range segment. This unit targets builders constructing systems where reliable power delivery and quiet operation matter more than bleeding-edge specifications. The ATX 3.1 compliance ensures compatibility with current and upcoming hardware, particularly graphics cards utilizing the 12V-2x6 connector standard. This 650W model provides adequate capacity for mainstream gaming configurations while maintaining headroom for transient load spikes, making it one of the best power supplies on the market.

Specifications and Design

In the Box

The Pure Power 13 M 650W arrives in sturdy cardboard packaging with an all-black aesthetic. A picture of the unit dominates the front panel, while specifications occupy the rear. Internal protection consists of a nylon pouch and basic paper inserts that secure the PSU during shipping. This packaging approach prioritizes function over presentation.

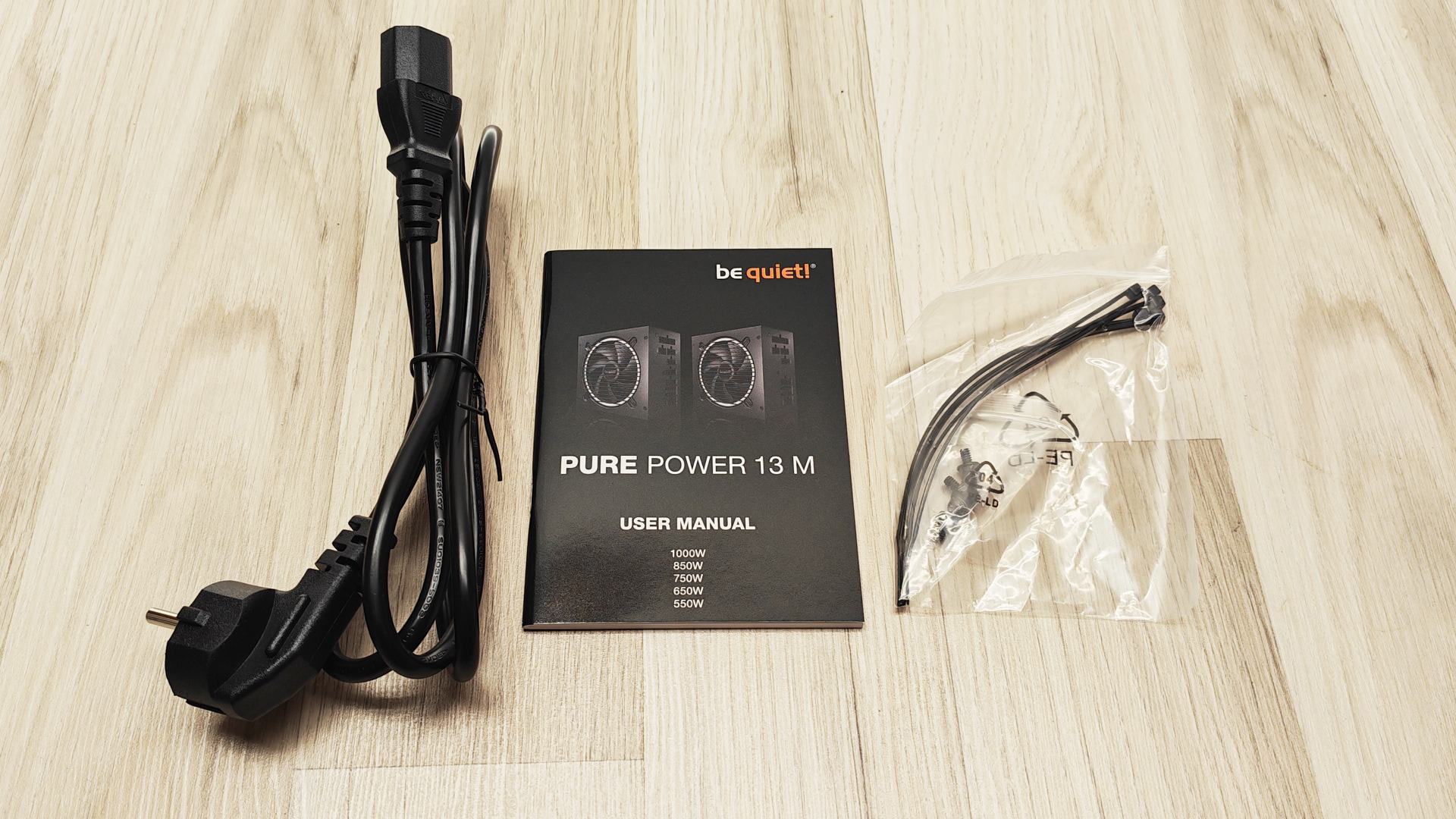

The bundle includes only essential items. Mounting screws and an AC power cable constitute the entirety of included accessories. A few cable ties assist with management. A basic printed manual provides necessary installation guidance without excessive documentation.

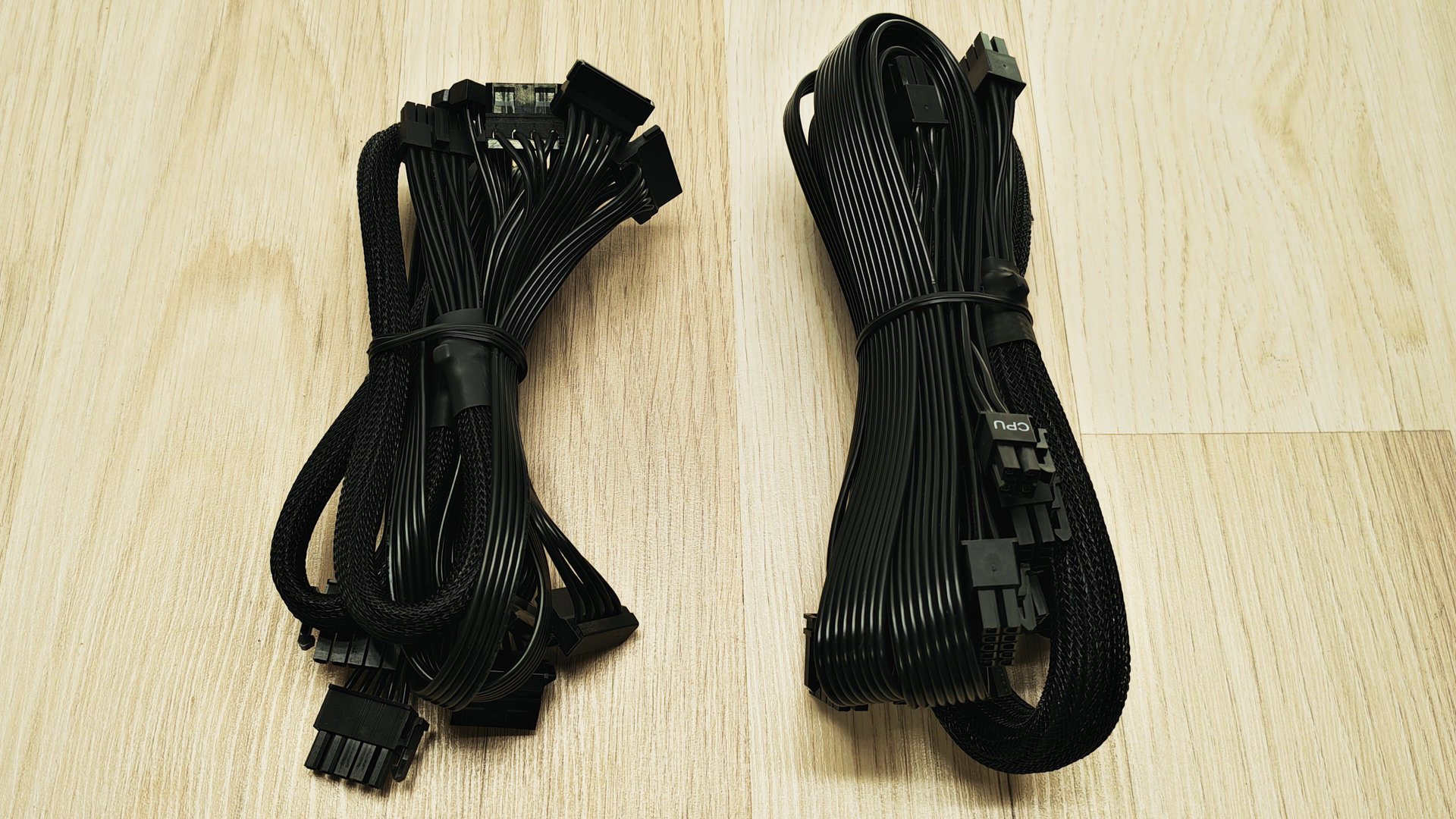

The fully modular cable configuration allows complete customization of connected cables, including the 24-pin ATX connector. All cables feature uniform black coloring across connectors and wires. Most cables utilize flat ribbon-style construction for simplified routing, though the 24-pin ATX and 12V-2x6 cables feature black nylon sleeving. The 12V-2x6 connector carries a 450W rating, appropriate for the unit's capacity. An unusual CPU power configuration provides one 4+4 pin EPS connector alongside a single 4-pin EPS connector, creating an asymmetric arrangement rarely seen in modern designs.

External Appearance

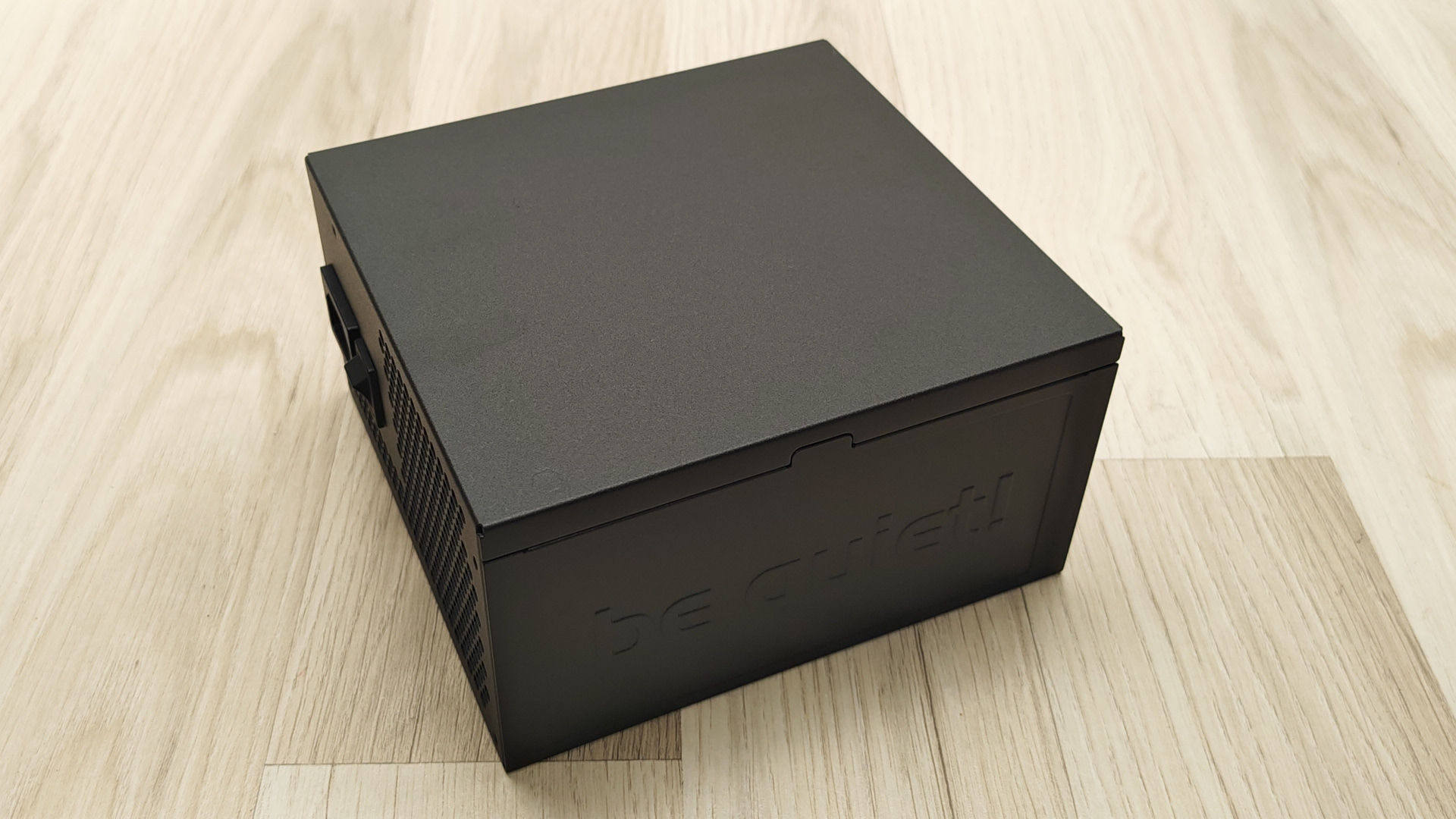

The chassis measures 86 mm × 150 mm × 160 mm (H × W × D), exceeding standard ATX dimensions quite a bit. This 160mm depth represents a compromise. Given the 120mm fan and 650W output, a more compact design could have been achievable with a slightly different internal layout, but Be Quiet! is primarily focused on optimal heat dissipation and would not let 20 mm’s of extra length get in the way

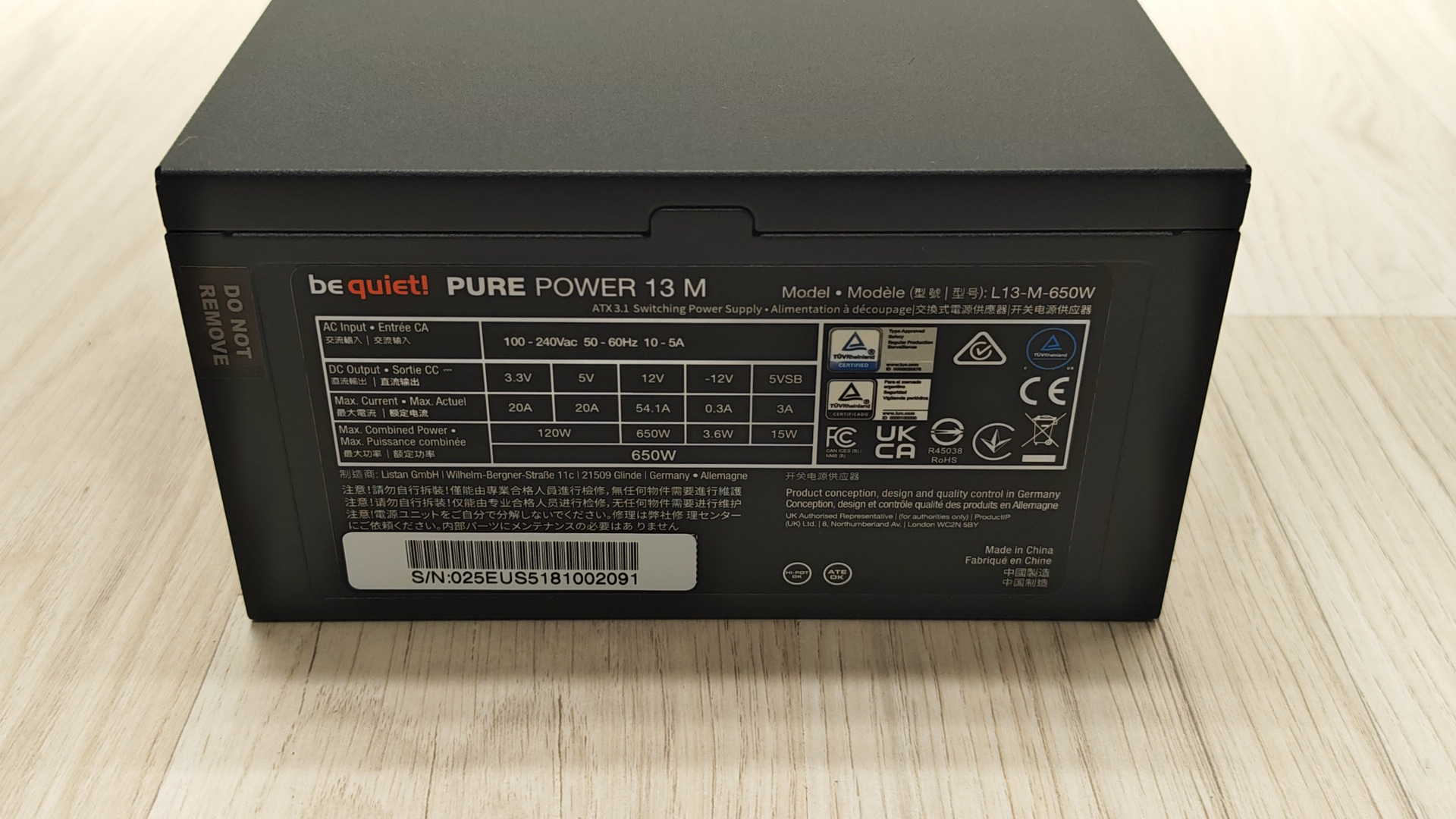

The external finish employs satin black chassis paint, applied with precision. Be Quiet!'s embossed logo appears on the right side panel, providing subtle branding without visual clutter. A removable parallel wire fan guard sits above the intake, with a white decorative ring beneath creating modest visual interest. The left side contains the standard electrical specifications sticker. The top panel remains completely unadorned.

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

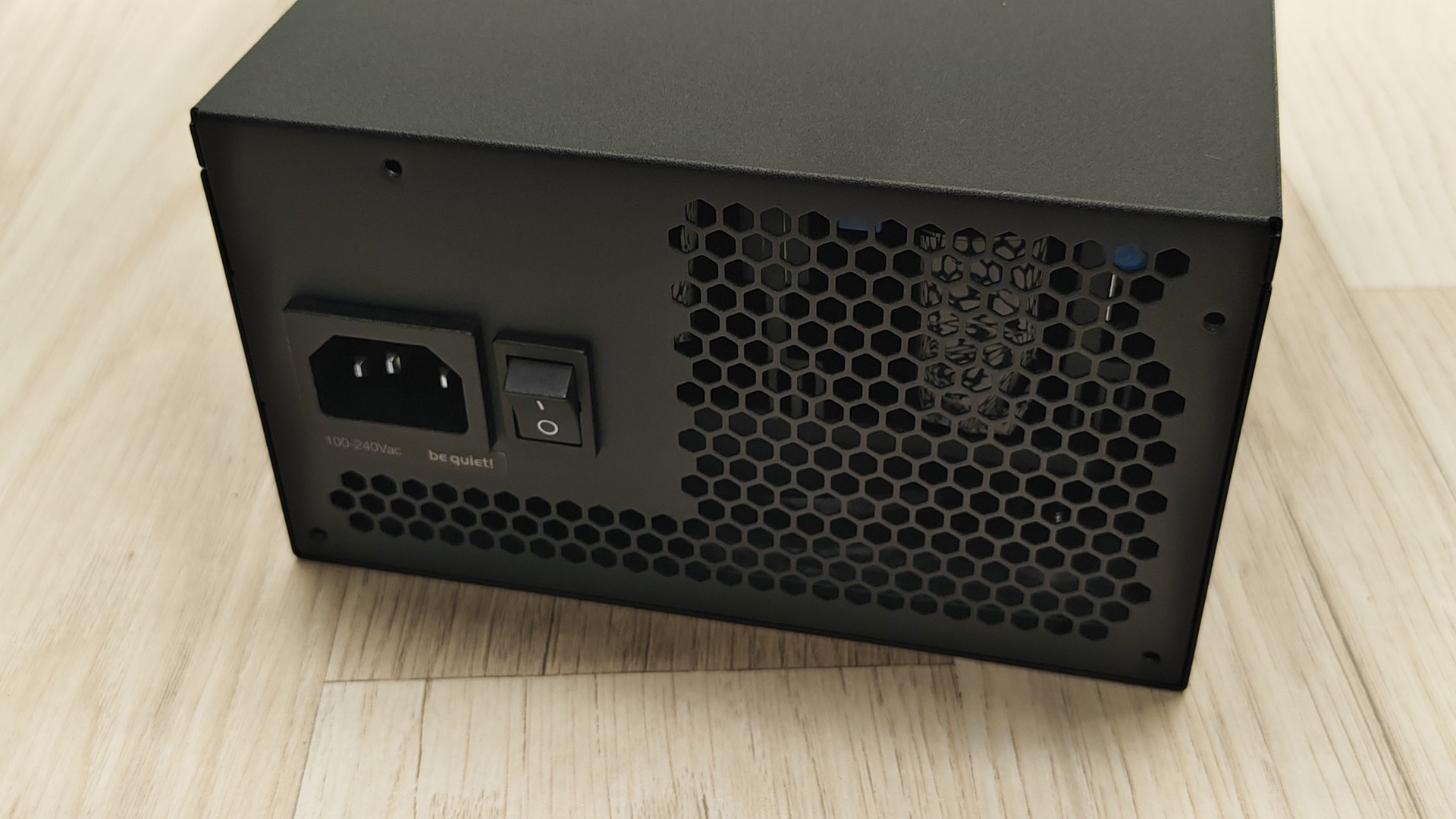

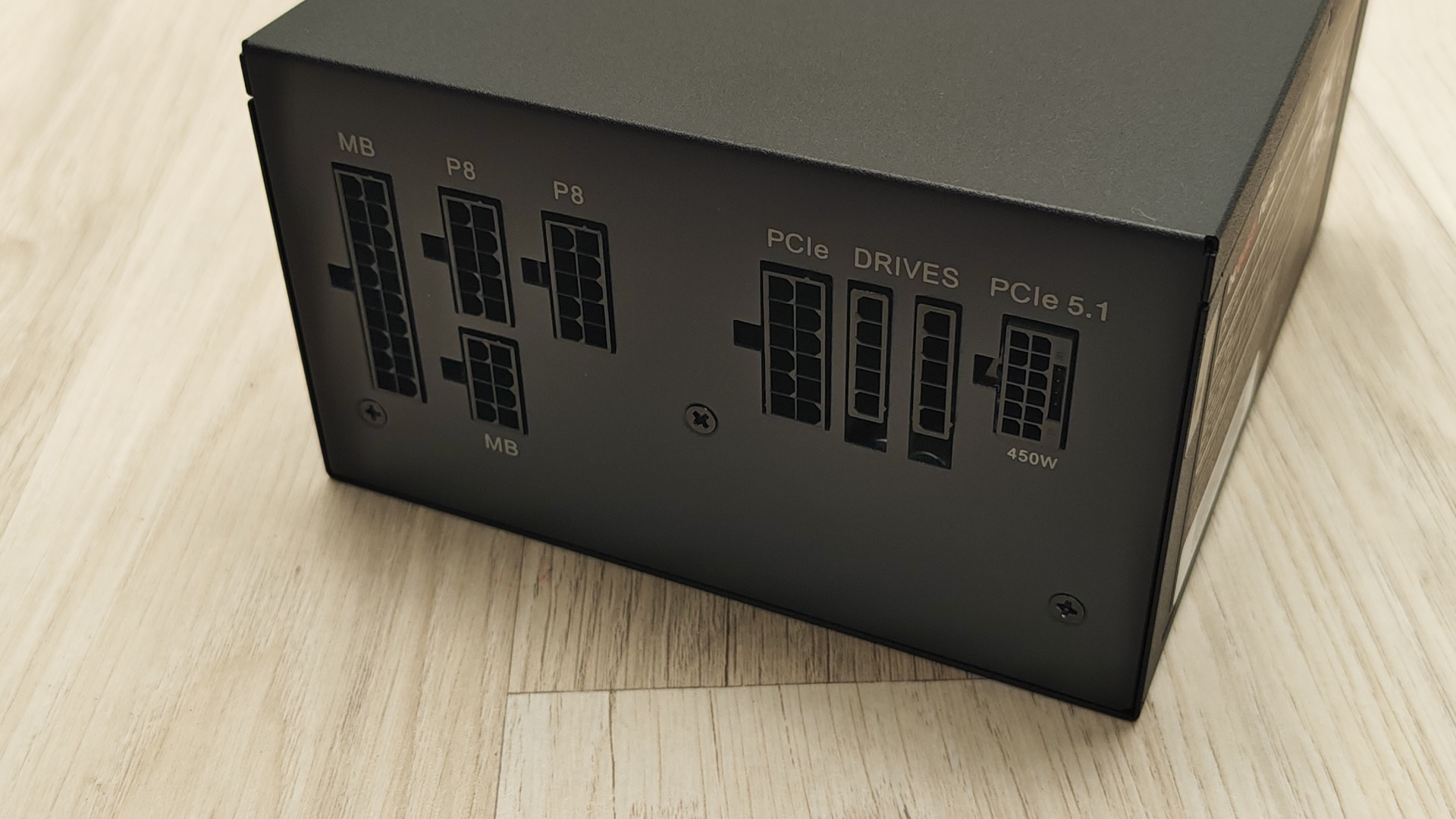

The rear panel houses the standard on/off switch adjacent to the AC receptacle. The front accommodates modular cable connectors with subtle white legends printed alongside each position. Notably, Be Quiet! clearly marks the 12V-2x6 connector's 450W limitation, preventing confusion about power delivery capabilities. With a total sustained output of just 650W, this unit is definitely not designed to power a top-tier graphics card.

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

Internal Design

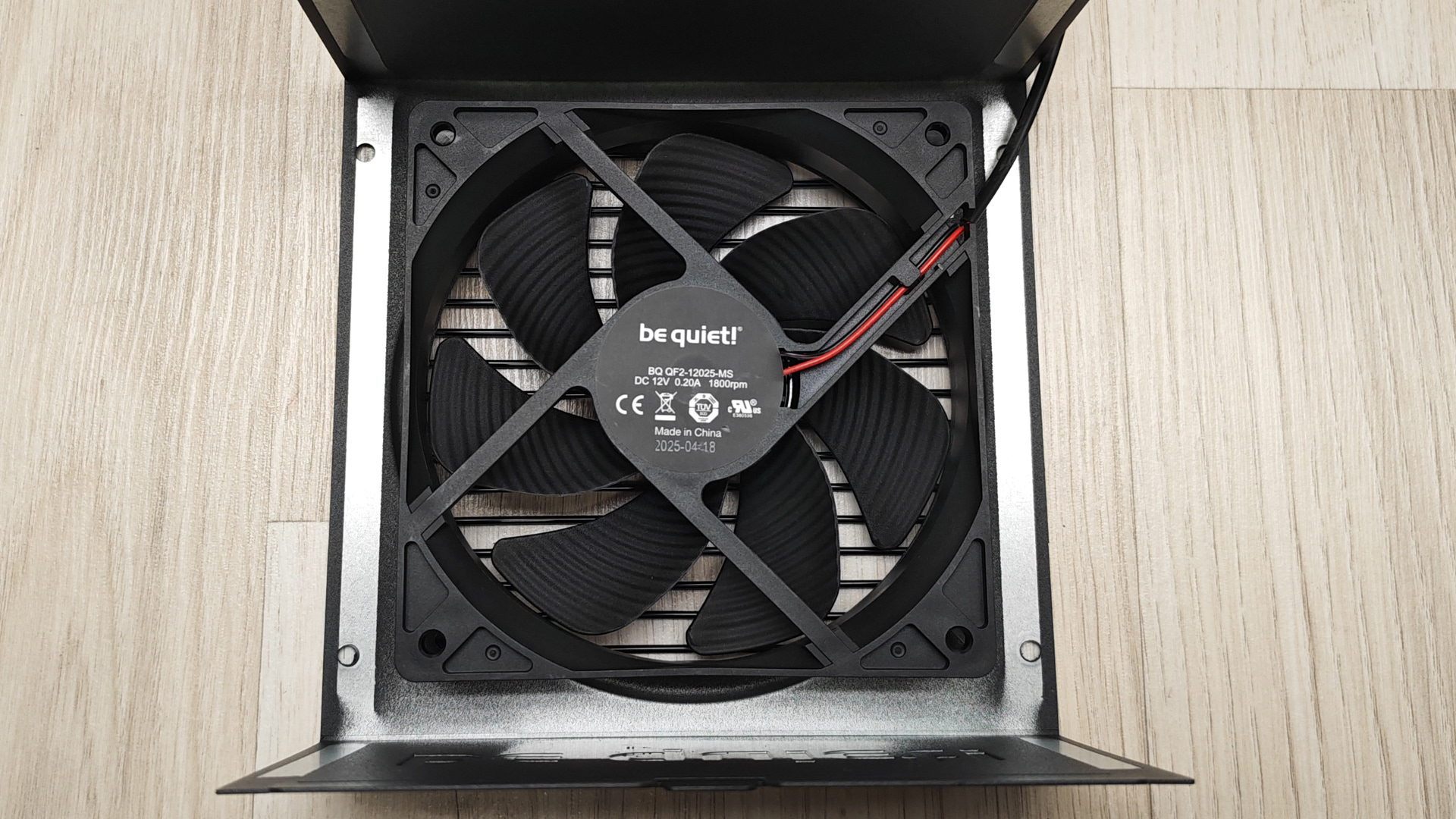

The cooling solution employs a Be Quiet! QF2-12025-MS 120mm fan featuring a rifle bearing engine. While rifle bearings represent an advancement over basic sleeve designs through enhanced lubrication and structural improvements, they typically exhibit shorter operational lifespans compared to fluid dynamic bearing or ball bearing alternatives. The 10-year warranty mitigates concerns about premature failure.

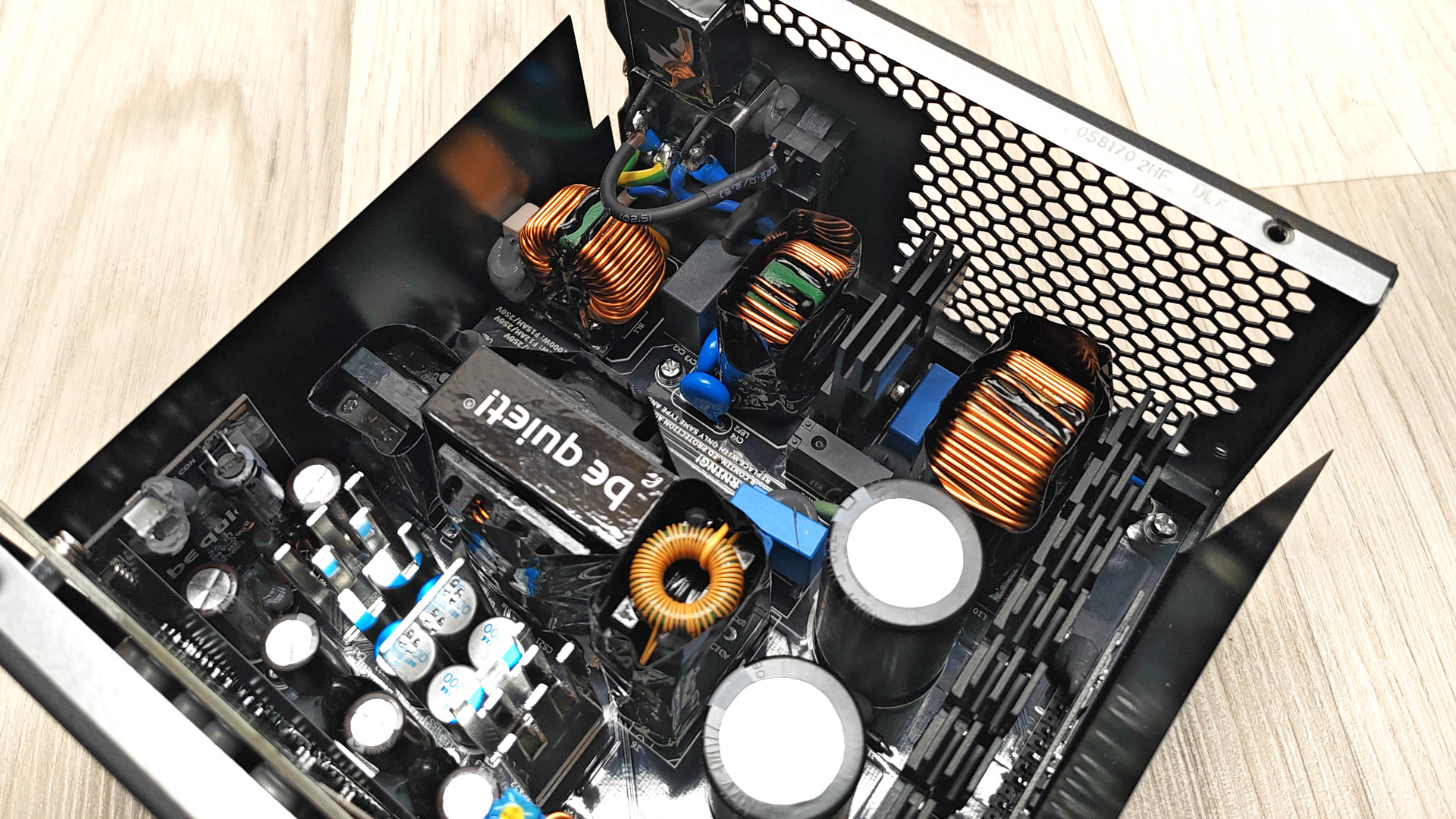

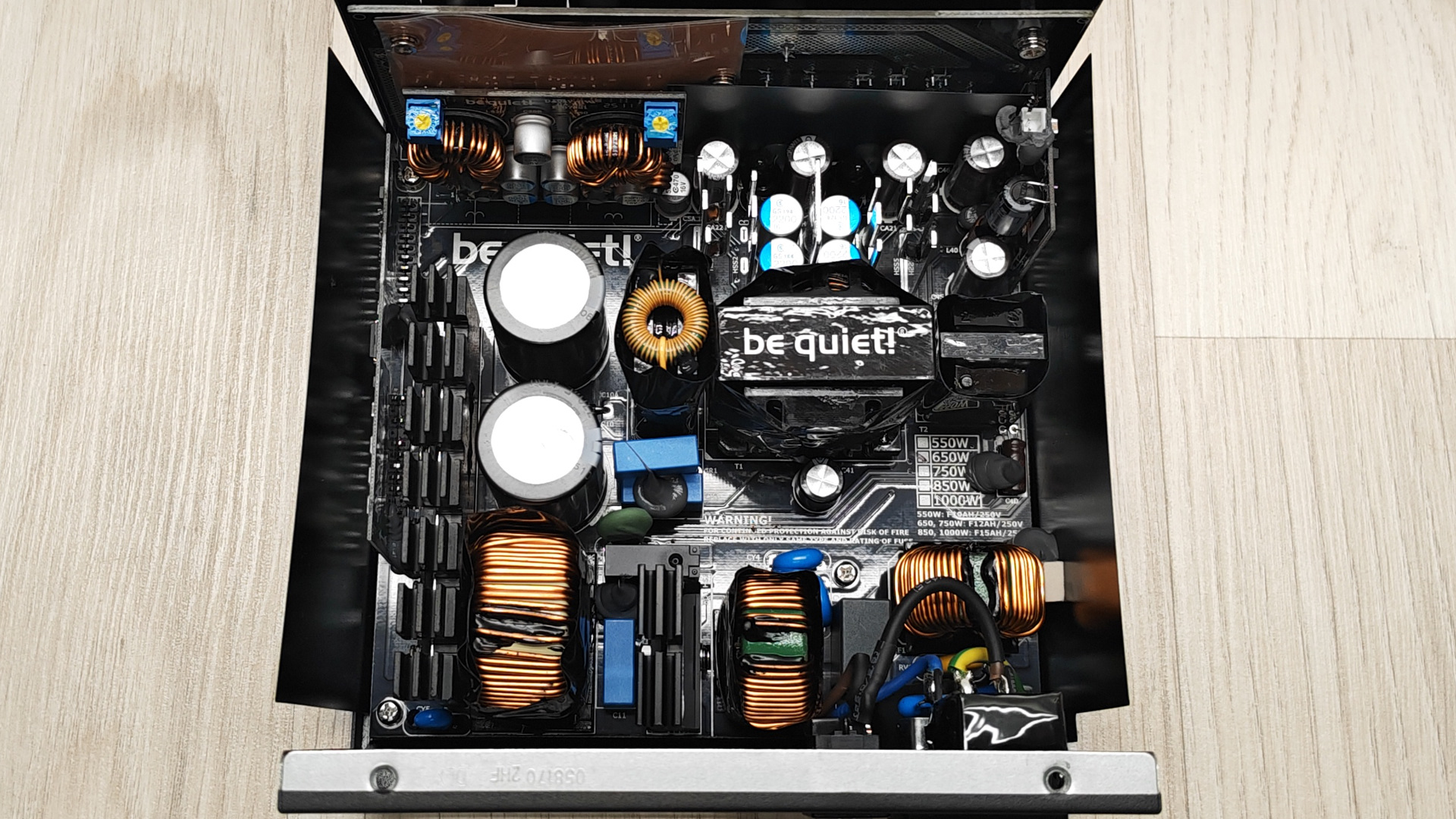

The platform employs established but modern topologies, emphasizing on reliability and cost effectiveness. Input filtering incorporates four Y capacitors, two X capacitors, and two filtering inductors at the AC receptacle entry point. Two rectifying bridges occupy a dedicated heatsink immediately following the filtration stage, providing adequate thermal management for the rectification components.

The APFC circuitry features two Toshiba TK20A60W MOSFETs and one diode on a substantial heatsink spanning the PCB edge. One filtering inductor and two Elite capacitors (330 μF and 270 μF) complete the APFC components. These Elite capacitors represent the first indicator of cost optimization in component selection.

The primary stage utilizes a half-bridge LLC resonant converter topology with two STM 24N60DM2 MOSFETs mounted on the same heatsink as the APFC components. This configuration has become standard in modern mid-range units, offering good efficiency characteristics. The heatsink dimensions provide ample thermal dissipation area, contributing to strong thermal performance.

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

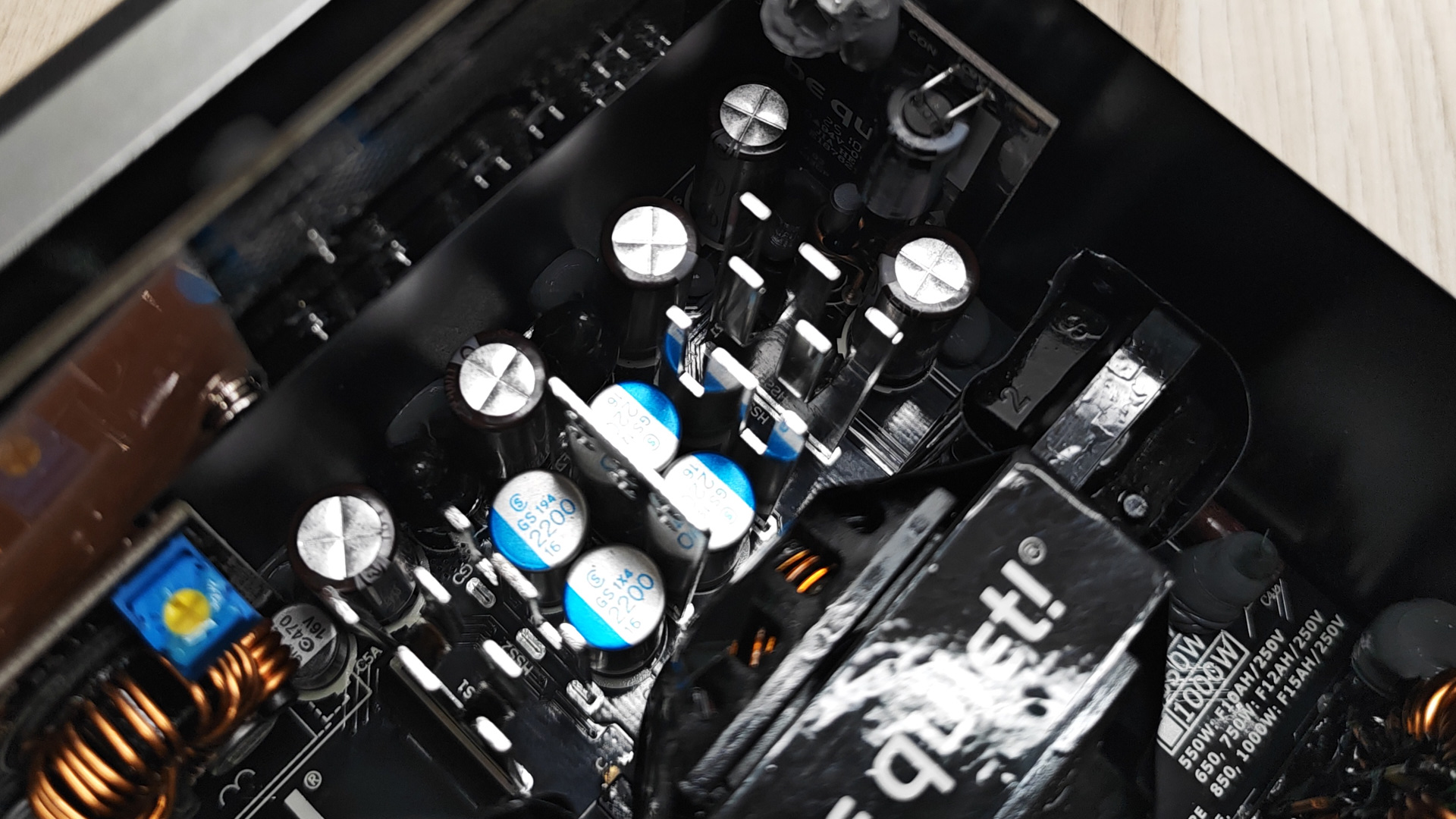

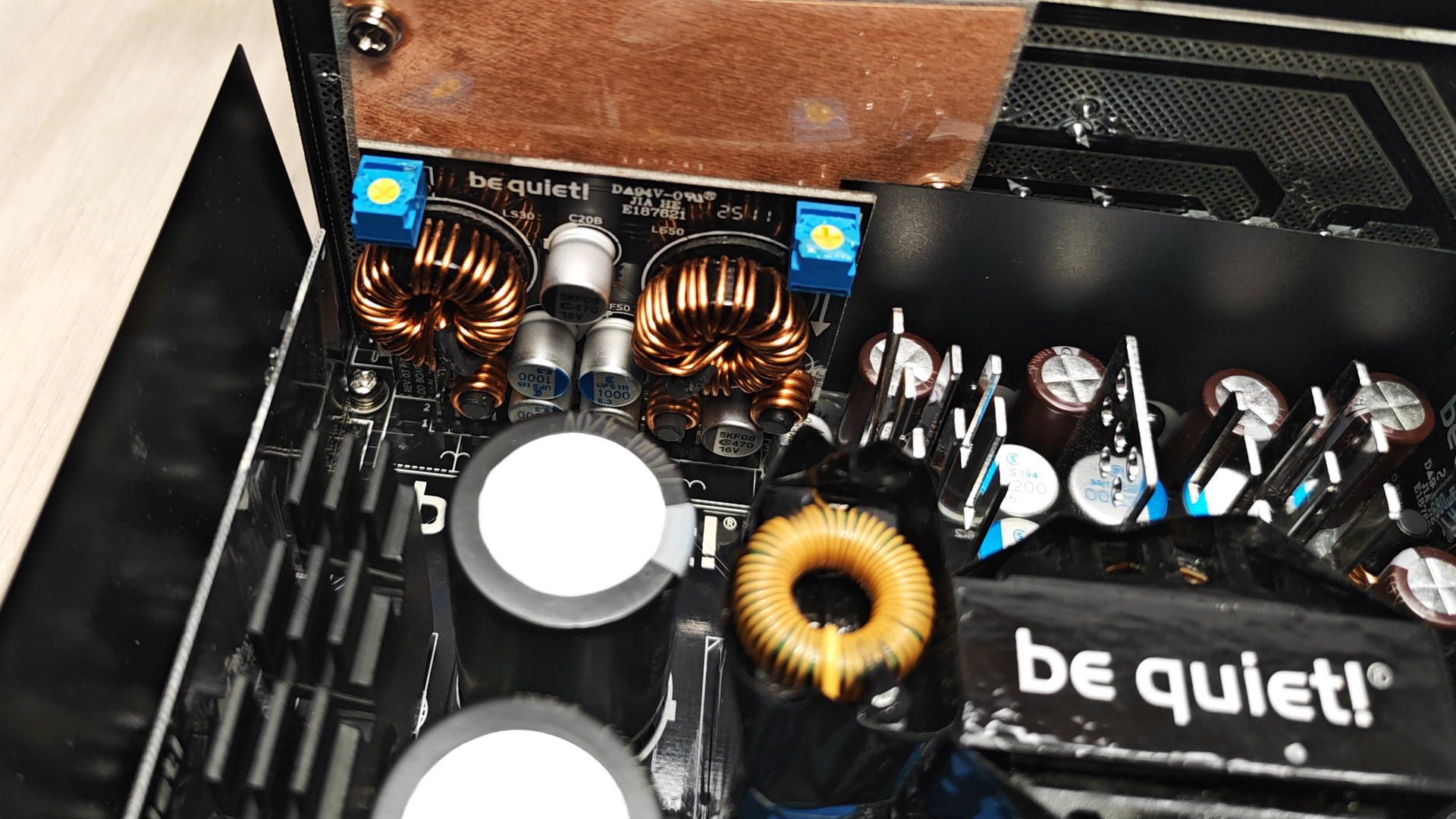

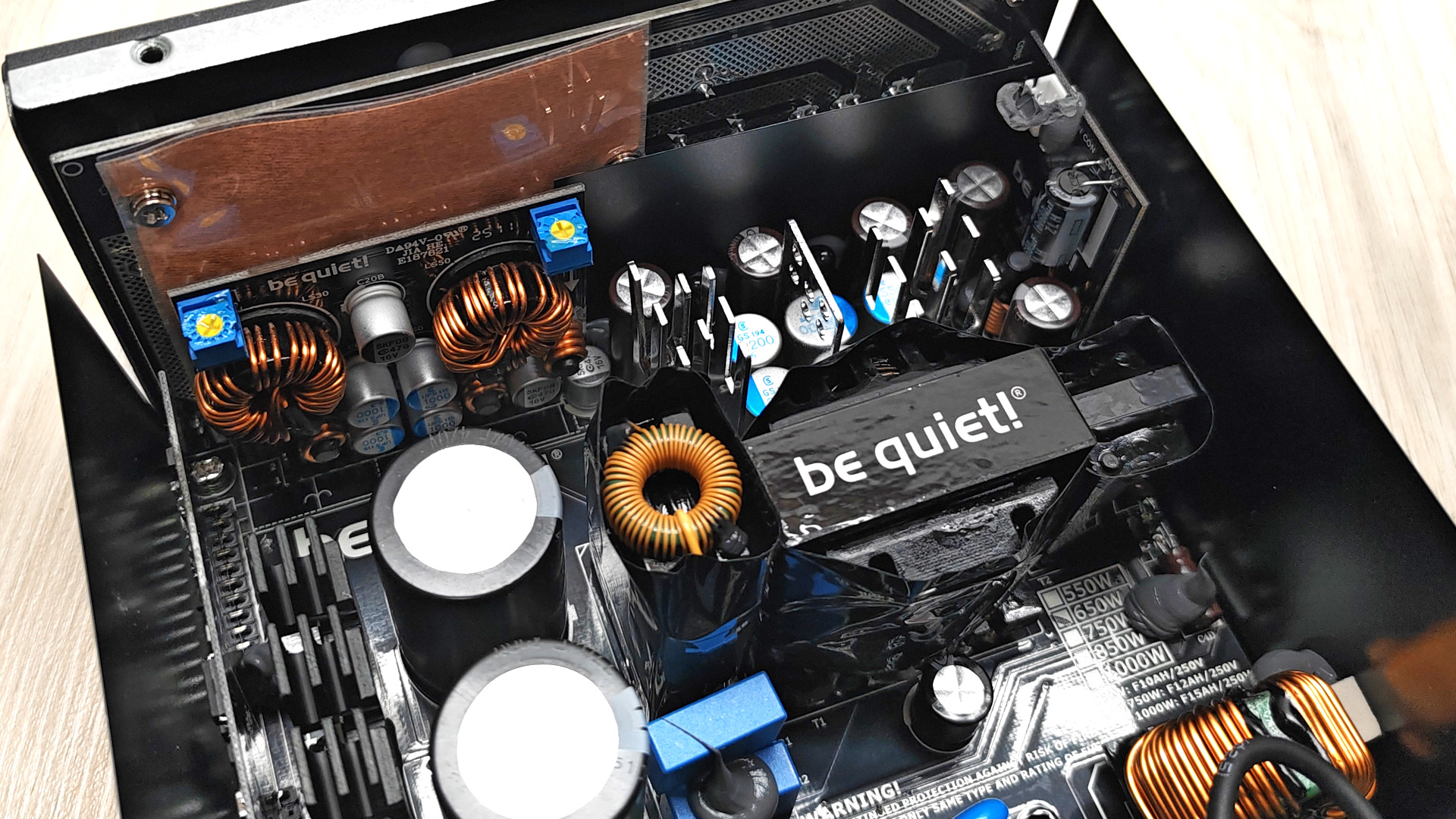

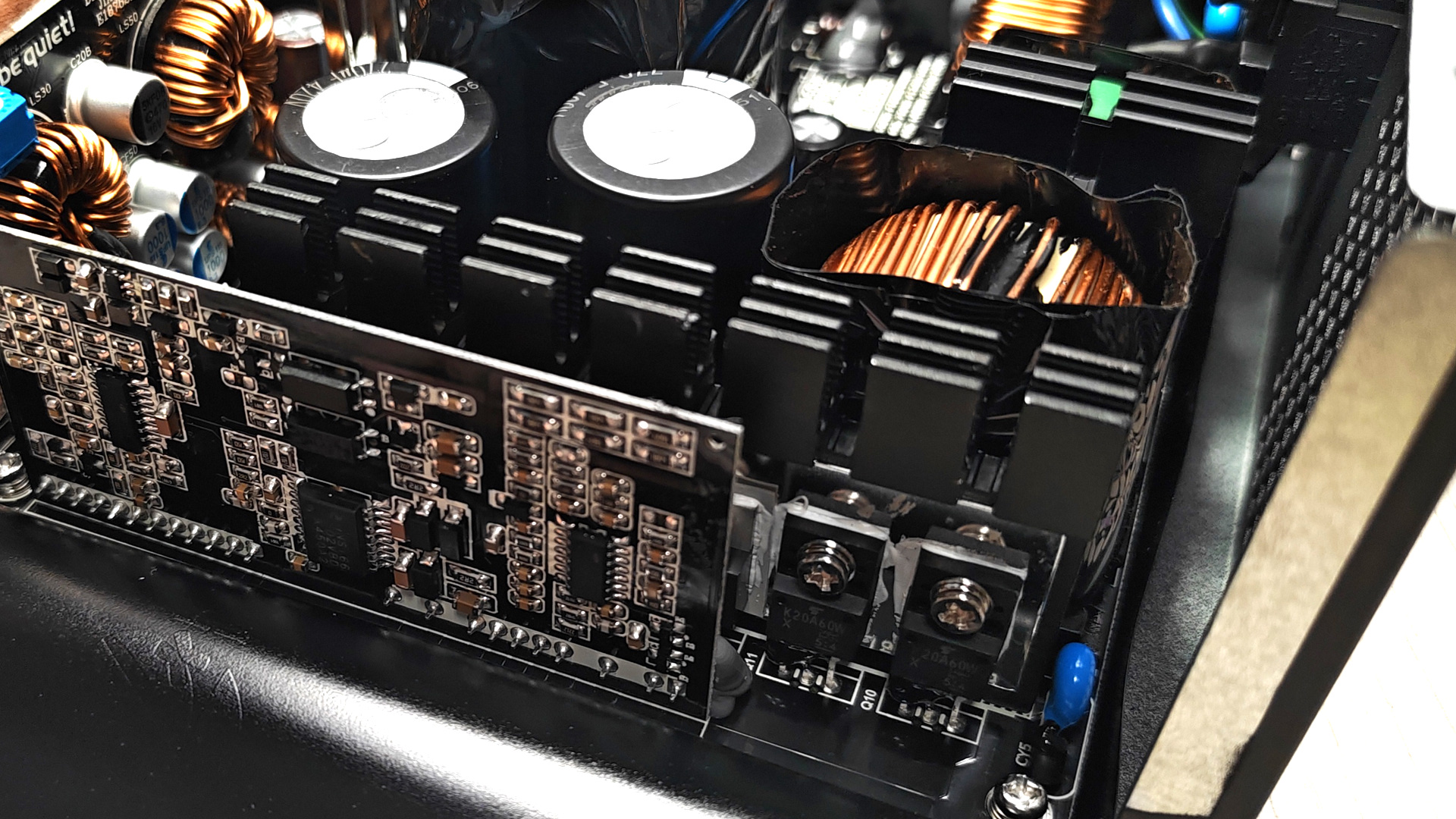

Four MOSFETs generate the 12V rail through synchronous rectification, with small PCB-mounted heatsinks providing cooling. DC-to-DC conversion circuits on an additional daughterboard produce the 3.3V and 5V rails.

Secondary side capacitors consist primarily of Elite units, with just one Rubycon capacitor present. Elite typically appears in lower-tier products, rarely in units carrying extensive warranties. This component choice contrasts with the otherwise premium design and raises questions about long-term reliability despite the company’s confidence indicated by the warranty period.

Cold Test Results

Cold Test Results (25°C Ambient)

For the testing of PSUs, we are using high precision electronic loads with a maximum power draw of 2700 Watts, a Rigol DS5042M 40 MHz oscilloscope, an Extech 380803 power analyzer, two high precision UNI-T UT-325 digital thermometers, an Extech HD600 SPL meter, a self-designed hotbox and various other bits and parts.

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

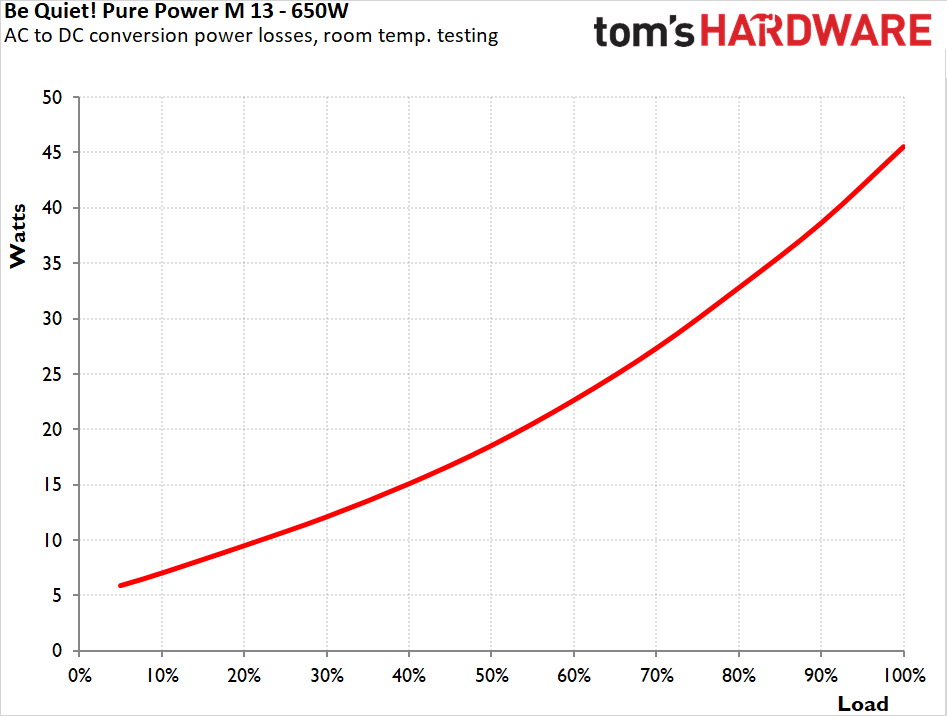

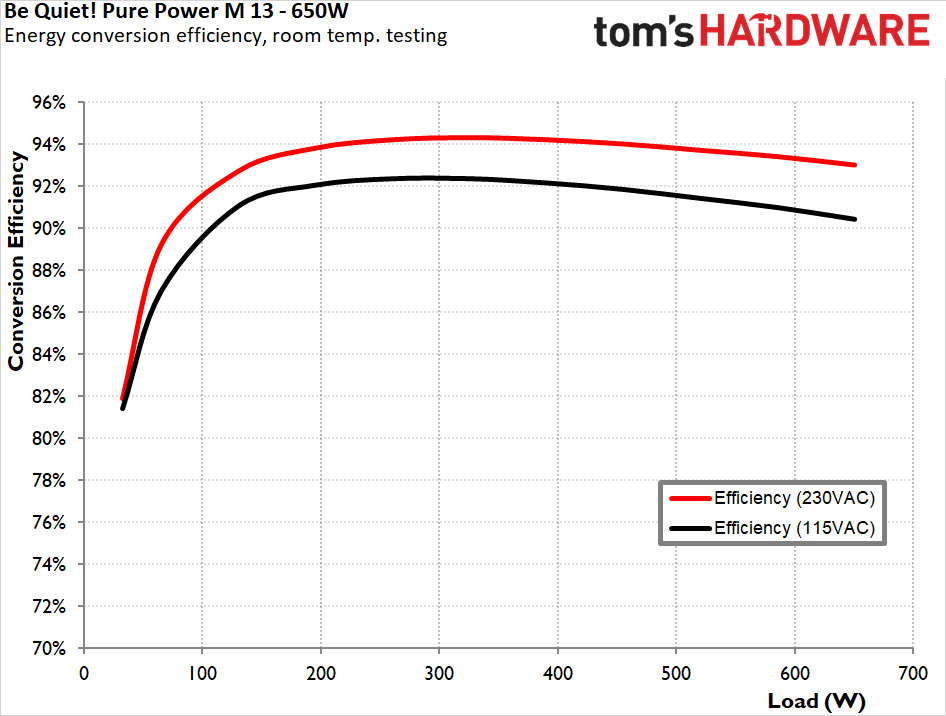

The Pure Power 13 M 650W achieves remarkable electrical conversion efficiency despite the Gold certification badges on its box. With 115 VAC input, the unit demonstrates 91.2% average efficiency across the nominal load range (20% to 100% capacity). This figure increases to 93.3% with 230 VAC input. Peak efficiency occurs near 50% load, reaching approximately 94% with 230 VAC input. These figures comfortably exceed 80Plus Platinum requirements and approach Titanium-level performance, making the Gold certification a curious understatement. It actually does have a Platinum certification from both Cybenetics and CLEAResult. Be Quiet! likely chose conservative marketing to position this unit below their Straight Power series, avoiding internal product cannibalization.

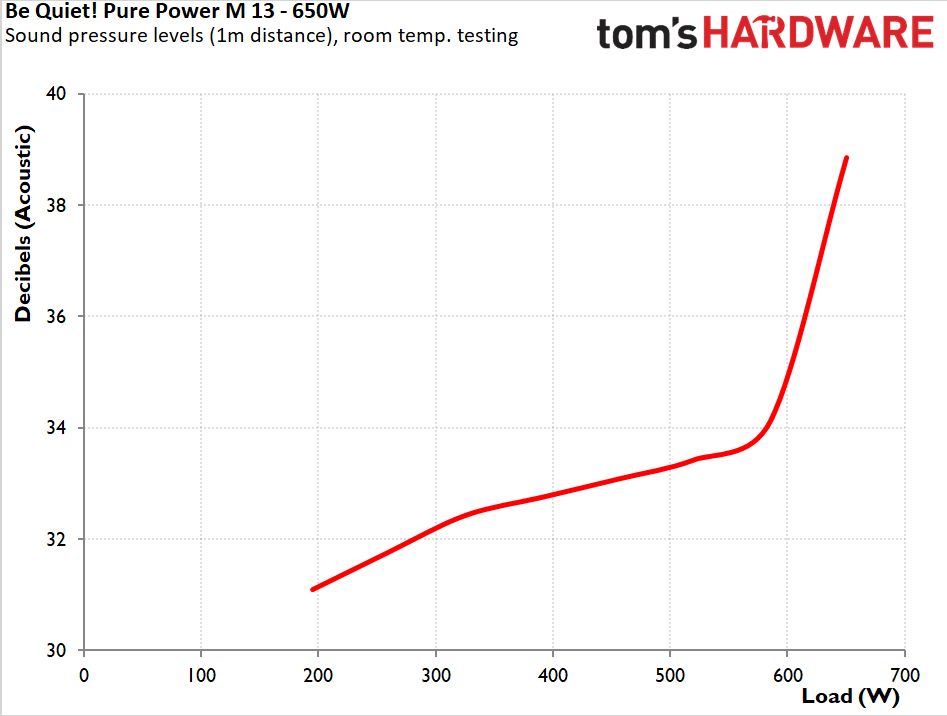

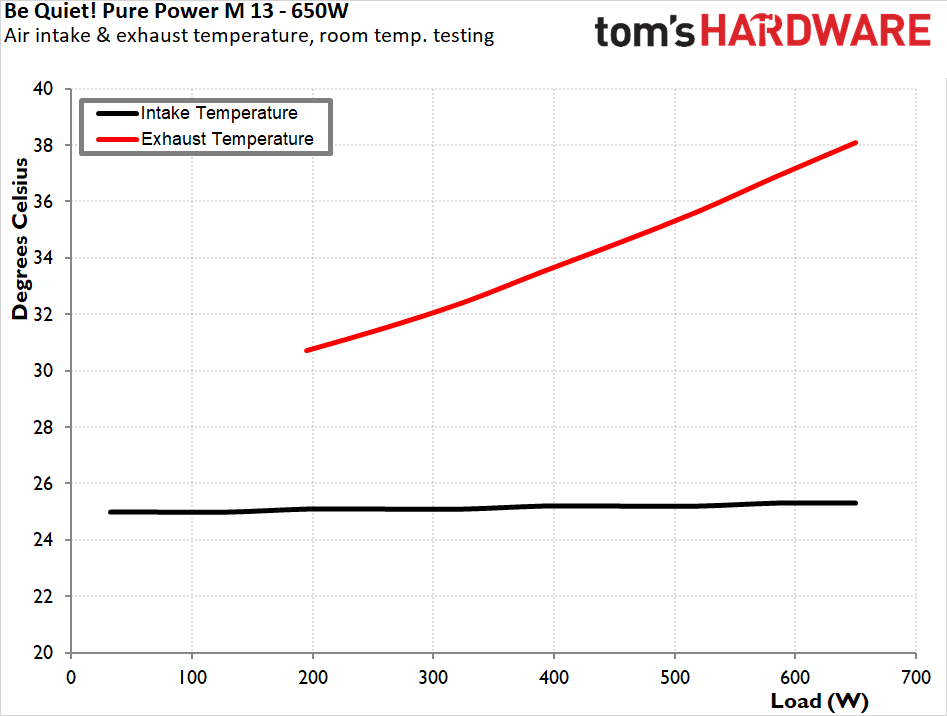

The semi-passive cooling mode keeps the fan stationary until load exceeds approximately 200W. Once operational, the fan maintains extremely low speeds across most of the load range. This design choice prioritizes acoustic performance during typical operating conditions. Beyond 600W, fan speed increases very sharply but not to its top speed. Internal temperatures remain remarkably low throughout testing.

Hot Test Results

Hot Test Results (~45°C Ambient)

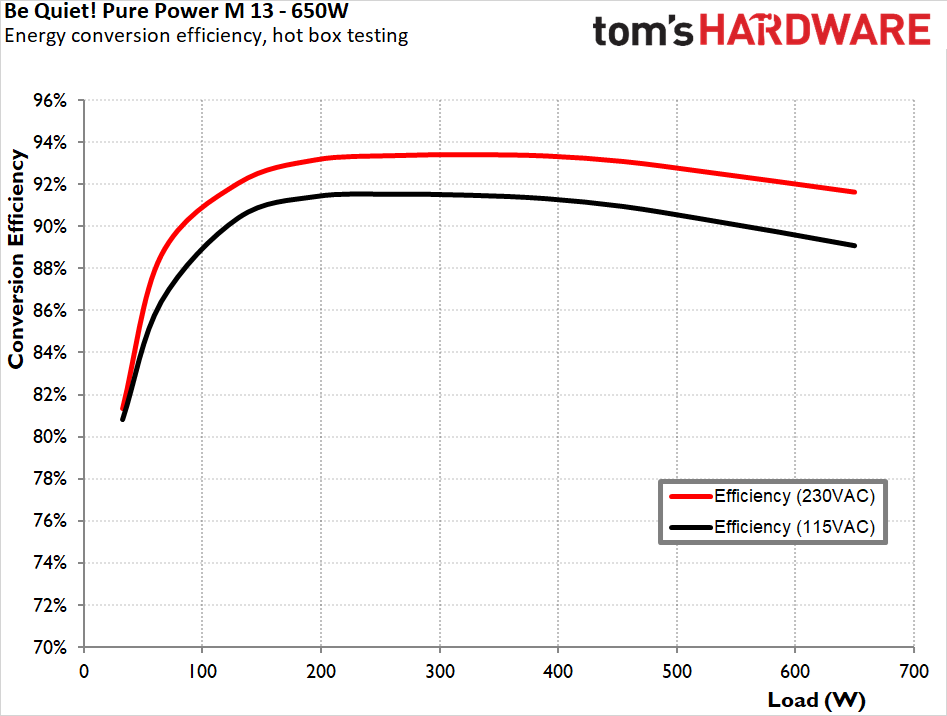

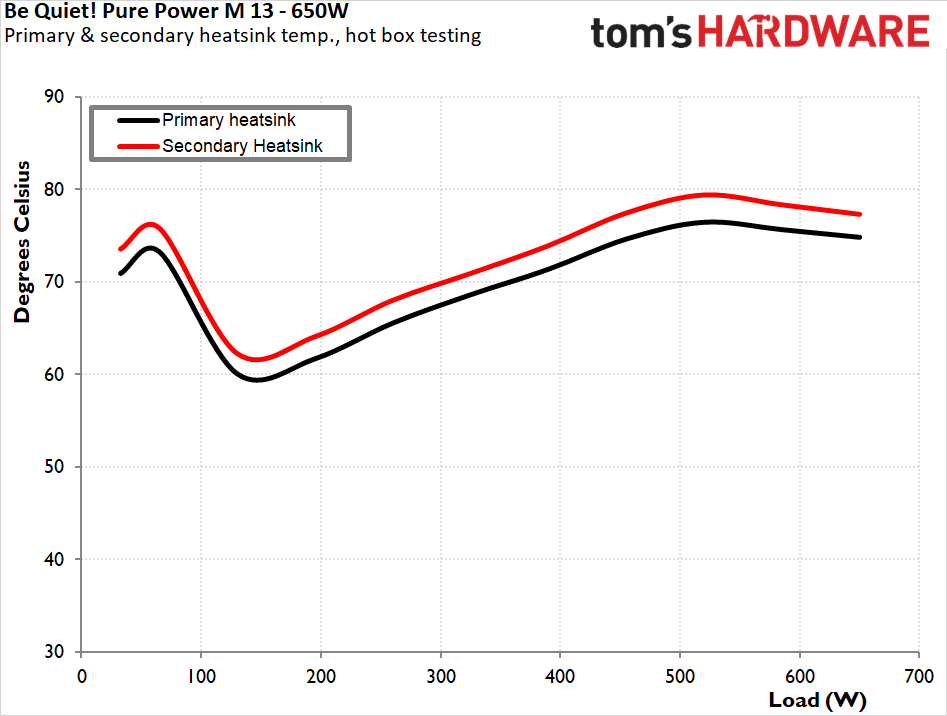

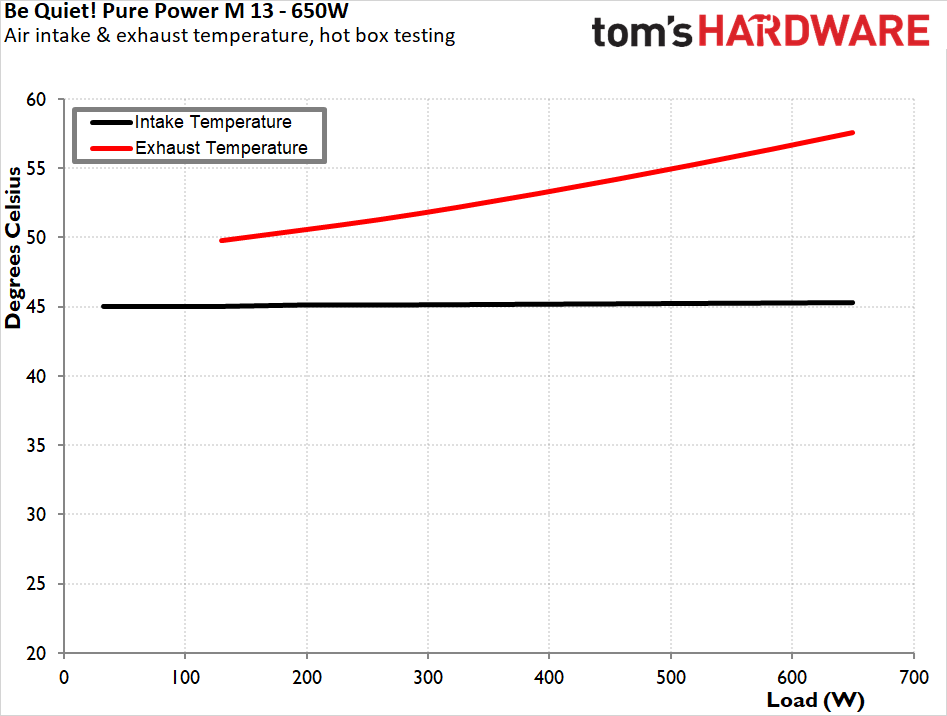

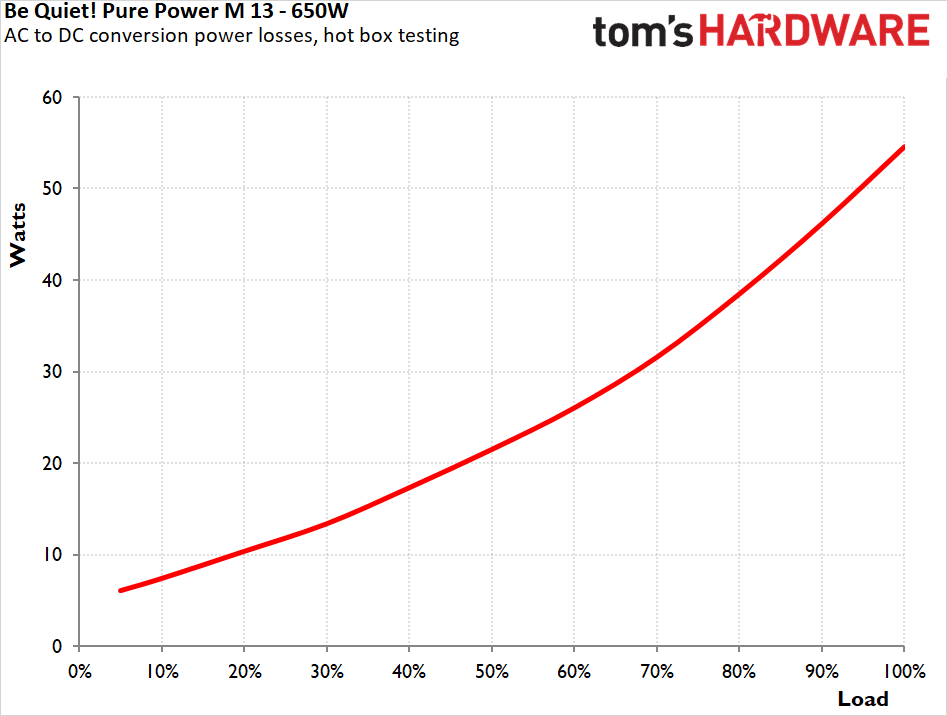

Elevated ambient temperature testing reveals measurable but passable efficiency degradation. Even though the unit is technically rated for operation up to 40°C, it effortlessly delivers its full output while maintaining commendable performance levels. The efficiency drops by about 1% evenly across the load range, without any signs of significant thermal stress. This thermal headroom demonstrates robust component selection and effective heatsink design.

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

(Image credit: Tom's Hardware)

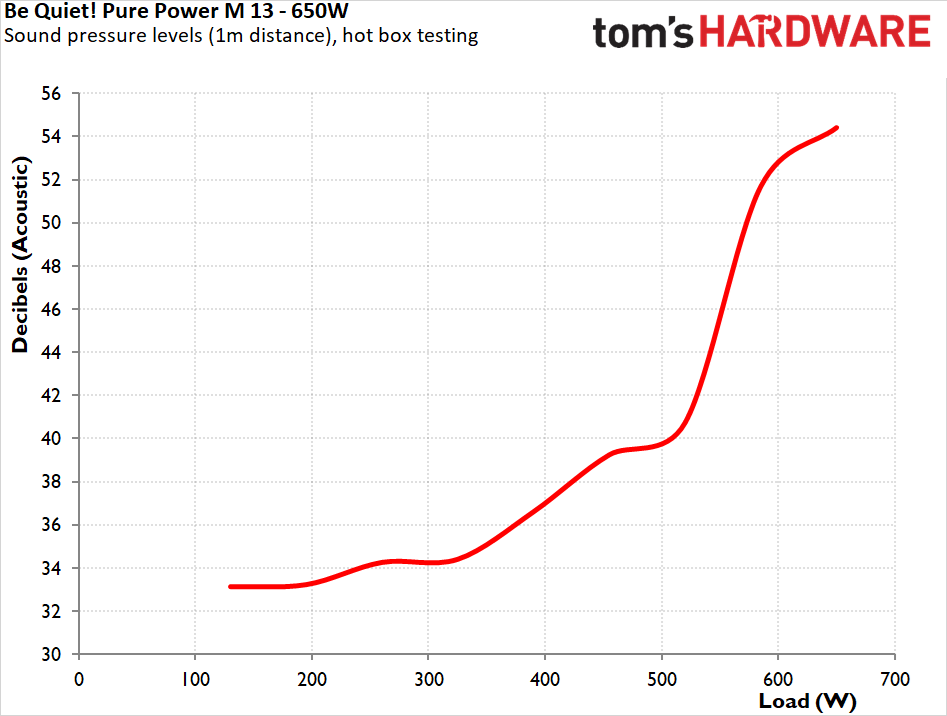

The semi-passive mode activates more readily under elevated temperatures, with the fan engaging right after the load exceeds 100W. Despite earlier activation, fan speed remains subdued until load reaches approximately 90% of capacity. At this threshold, the thermal control circuit prioritizes reliability over acoustics, commanding maximum fan speed. This transition is very aggressive, suggesting that the unit it programmed to prioritize component protection over consistent acoustic performance when stressed. The internal temperatures remain relatively low even at maximum output, well below the point where over-temperature protection would engage.

PSU Quality and Bottom Line

Power Supply Quality

The electrical performance demonstrates competitive characteristics within its segment. Voltage regulation maintains tight tolerances, with the 12V rail exhibiting approximately 1% variance. The 3.3V and 5V rails demonstrate even tighter regulation at 1.5% and 1.6% respectively. This precision is rather typical performance for Gold-certified units but not bad compared to more premium Platinum-certified products either. Ripple suppression achieves outstanding results. The 12V rail exhibits maximum ripple of 30 mV, while the 5V and 3.3V rails measure 20 mV maximum. These figures are way below the ATX specification limits, demonstrating exceptional filtering capabilities.

During our routine evaluation, we examine the fundamental protection features of all power supply units we review, including Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), and Short Circuit Protection (SCP). The 3.3V and 5V rails trigger OCP at 146% and 142% of maximum current respectively – a bit high but not unnaturally so for a modern PSU. The 12V rail OCP activates at 120%, a bit sharp for an ATX 3.1 unit. The OPP permits sustained operation up to 128% of nominal capacity before shutdown, offering substantial headroom for transient loads.

Bottom Line

The Pure Power 13 M 650W occupies an interesting position in the power supply market. FSP's platform delivers very solid performance through mature design choices rather than innovative approaches. This conservative strategy ensures reliability while potentially limiting competitive differentiation beyond the core specifications.

The construction quality meets expectations for a unit carrying a 10-year warranty from an experienced OEM. FSP's in-house manufacturing and quality control processes provide consistency that contract manufacturing arrangements often struggle to match. The electrical characteristics consistently exceed its Gold-level markings substantially, with efficiency and power quality reaching Platinum-tier performance. The ripple suppression achieves exemplary results, delivering cleaner power than many higher-certified competitors.

The component selection presents the primary concern. While active components utilize quality silicon from reputable manufacturers, the reliance on Elite capacitors for bulk filtering raises questions about long-term stability. Elite is an established manufacturer and has been around for decades but we rarely see their products in top-tier products. The company’s willingness to back this design with a decade warranty suggests confidence in the platform's longevity despite the unconventional capacitor choice.

Thermal and acoustic performance delivers great results, with a hint of. The semi-passive mode provides excellent silence during light loads, aligning with Be Quiet!'s brand philosophy. However, the aggressive thermal management above 90% load creates noticeable noise as the control circuit prioritizes component protection. This design choice favors reliability over consistent acoustic refinement, a reasonable engineering decision that nevertheless creates a slight contradiction with the company's quiet-focused branding.

The pricing represents the most significant consideration. At approximately $100 retail, this Gold-certified unit commands a premium compared to competitors with identical certification. However, when evaluated against Platinum-certified alternatives with similar specifications, the value proposition becomes more compelling. The 10-year warranty, ATX 3.1 compliance, and genuine Platinum-level efficiency provide tangible benefits that justify the price premium for users prioritizing long-term reliability over initial cost savings.

The Pure Power 13 M 650W targets a specific audience. Budget-focused builders seeking minimum cost for adequate Gold certification will find better value elsewhere. Conversely, enthusiasts and professionals valuing balanced performance, comprehensive compatibility, and warranty-backed reliability will appreciate the investment. The ATX 3.1 compliance ensures compatibility with current and future mainstream graphics cards, providing partial protection against obsolescence. The only setback is the high retail price but, considering this should be compared to Platinum-level products when reaching the shopping cart, the Pure Power 13 M 650W is a great investment for those seeking a premium unit at this power range.
